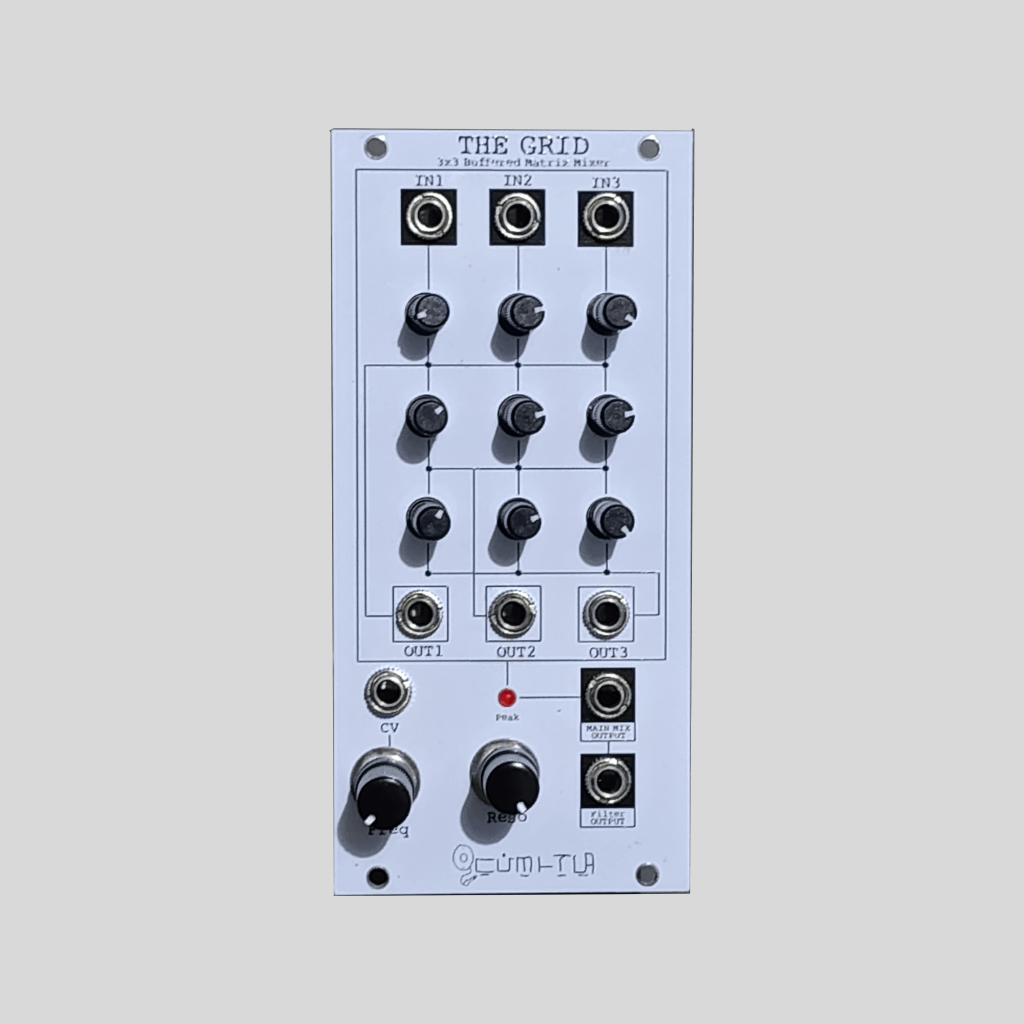

tHE GRID [HNS – 150] – 3×3 Buffered Matrix Mixer

Available now for production, exclusively on a made-to-order basis as part of the Harsh Noise System or as individual module. Contact Me for further details or explore the user manual and its official demo video below to see it in action.

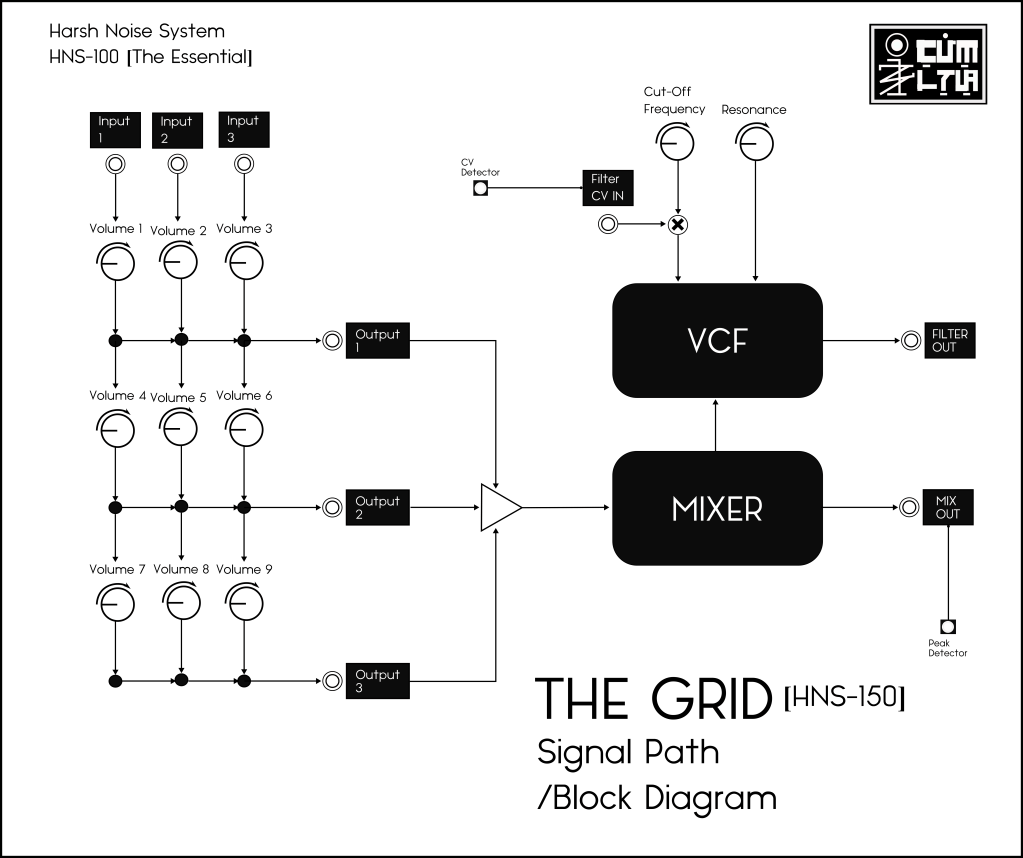

The Grid is an active 3×3 buffered matrix mixer, a type of mixer commonly used in noise and experimental music performances.

It serves as a powerful tool for sound layering and feedback loop generation.

To add character and enhance sound sculpting, The Grid is also equipped with a voltage-controlled filter (VCF) with resonance.

*Specifications*

Power Consumption:
+12V / 39mA peak, -12V / 0mA peak

Size:
12HP width, 36mm depth

Power Connection:
10-pin (2×5) power header

USER MANUAL:

Official Demo:
