PANNIC-SPREAD [HNS – 180] – 3 Channel Audio mixer

Available now for production, exclusively on a made-to-order basis as part of the Harsh Noise System or as individual module. Contact Me for further details or explore the user manual and its official demo video below to see it in action.

Pannic-Spread serves as the main output of the Harsh Noise System.

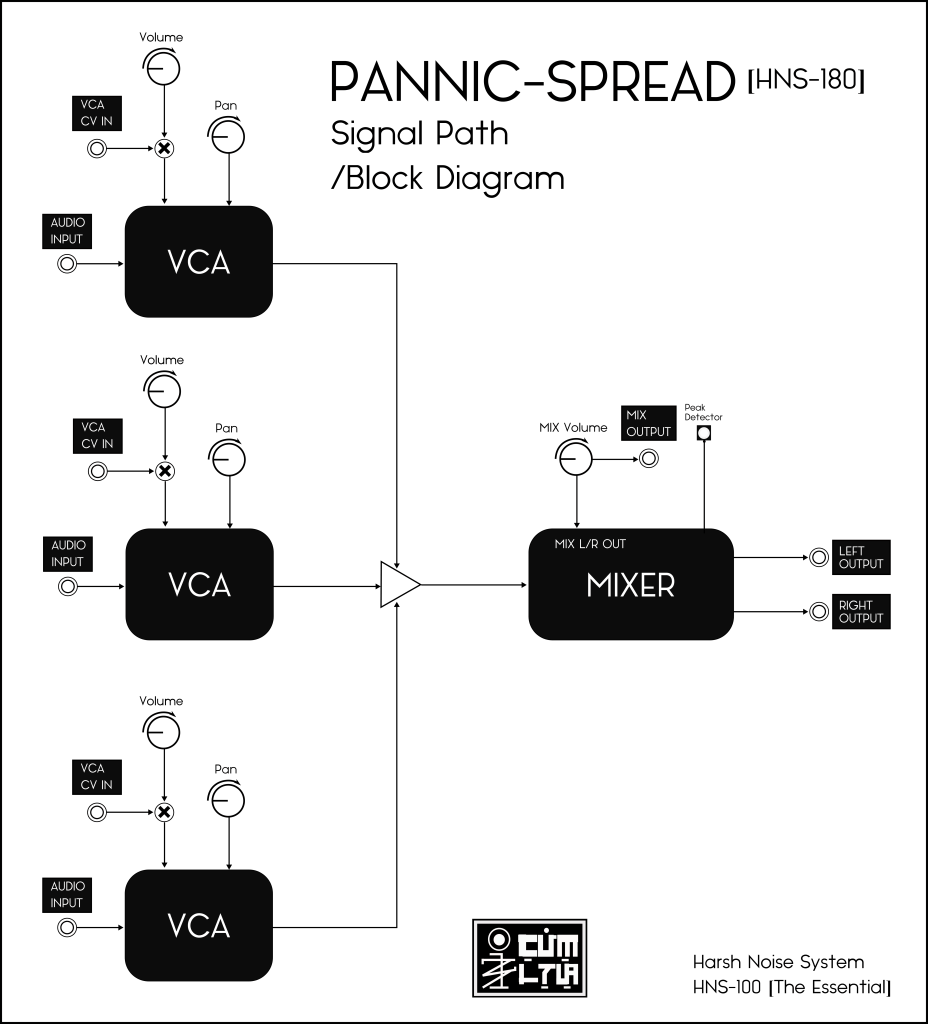

A simple yet effective 3-channel audio mixer with panning effect. it also features a simple VCA on each channel for subtle fade-out, fade-in modulation within the main mix.

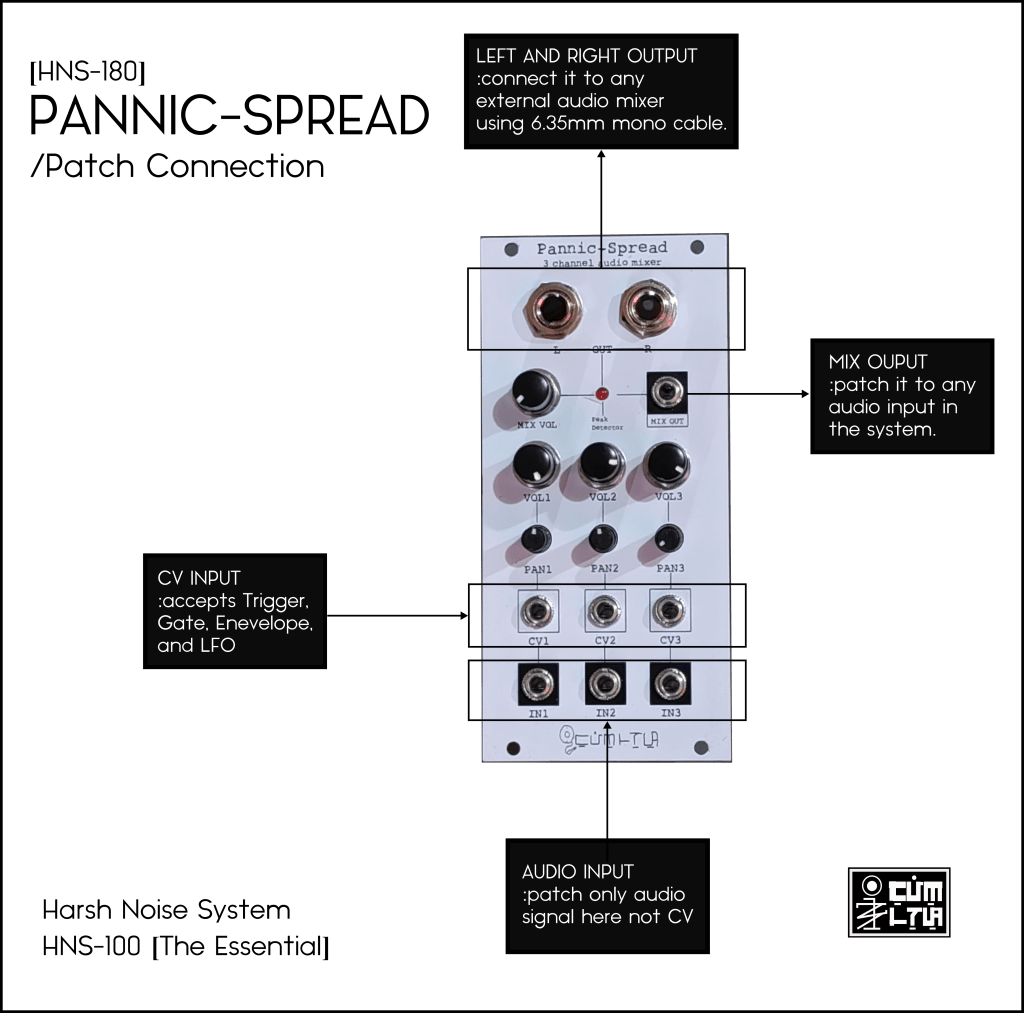

It Features 1/4″ left and right mono jacks for stereo panning and for connection to an external audio mixer, a 3.5mm Eurorack main output with dedicated volume control that can also be used for feedback looping.

*Specifications*

Power Consumption:
+12V / 6mA peak, -12V /7mA peak

Size:
12HP width, 36mm depth

Power Connection:
10-pin (2×5) power header

USER MANUAL:
