GAU [HNS – 140] – Gain Augmentation Unit

Available now for production, exclusively on a made-to-order basis as part of the Harsh Noise System or as individual module. Contact Me for further details or explore the user manual and its official demo video below to see it in action.

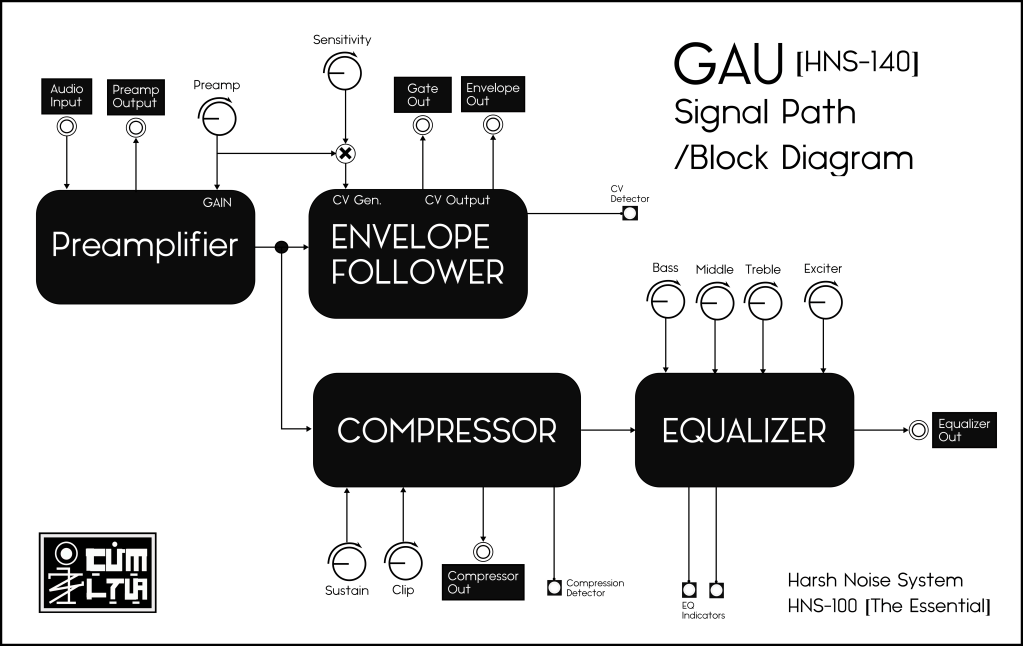

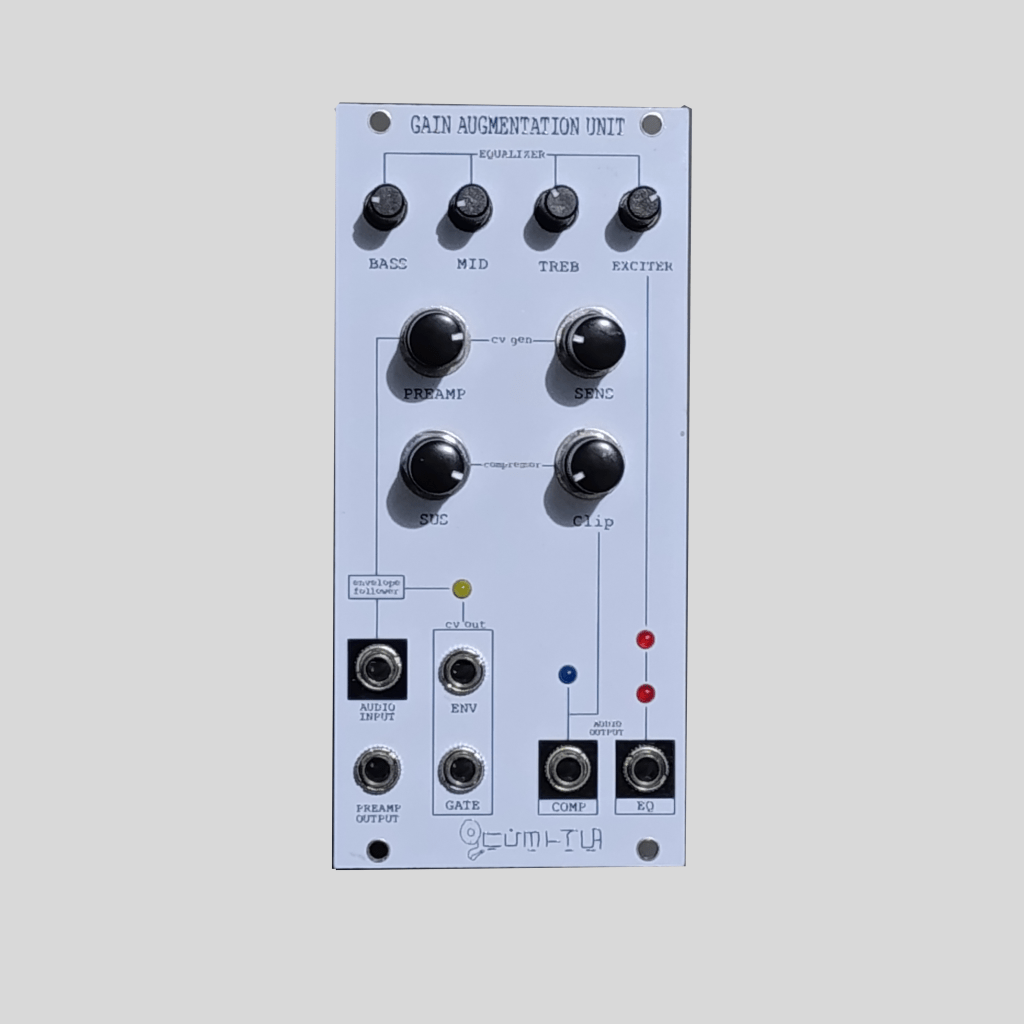

GAU, or Gain Augmentation Unit, is a dynamic effects processor with an integrated envelope follower in a single module.

It accepts both Eurorack and line-level signals but is primarily designed for electroacoustic inputs, such as a spring shaker or any source using a piezo or microphone—common tools in the noise genre.

While shaping your acoustic sound with its 3-band EQ, harmonic exciter, and compressor, you can simultaneously modulate other modules in the Harsh Noise System by converting the audio signal into control voltages via the envelope follower.

*Specifications*

Power Consumption:
+12V / 49mA peak, -12V / 6mA peak

Size:
12HP width, 36mm depth

Power Connection:
10-pin (2×5) power header

USER MANUAL:
