REFRACTION [HNS -170] – Bending and Movement

Available now for production, exclusively on a made-to-order basis as part of the Harsh Noise System or as individual module. Contact Me for further details or explore the user manual and its official demo video below to see it in action.

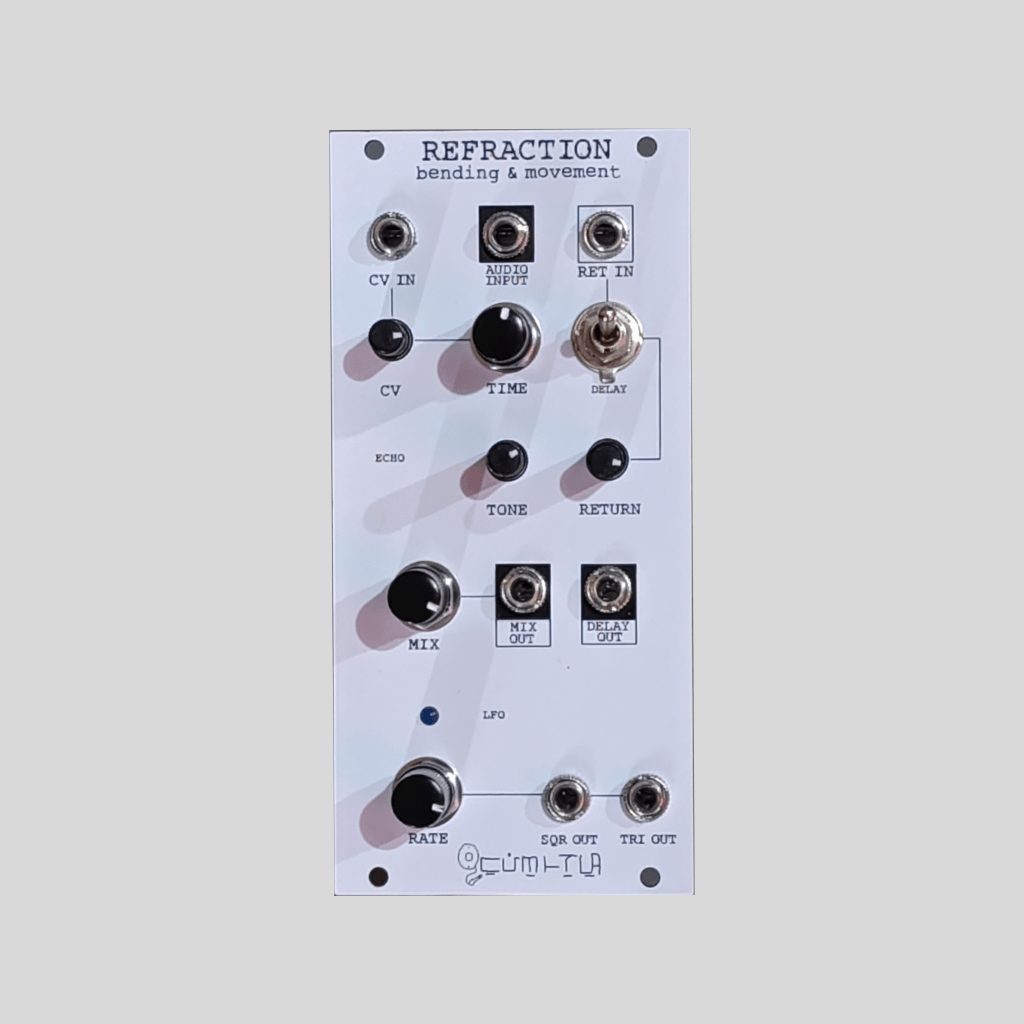

Refraction is a Lo-Fi audio-feedback effects and modulation module.

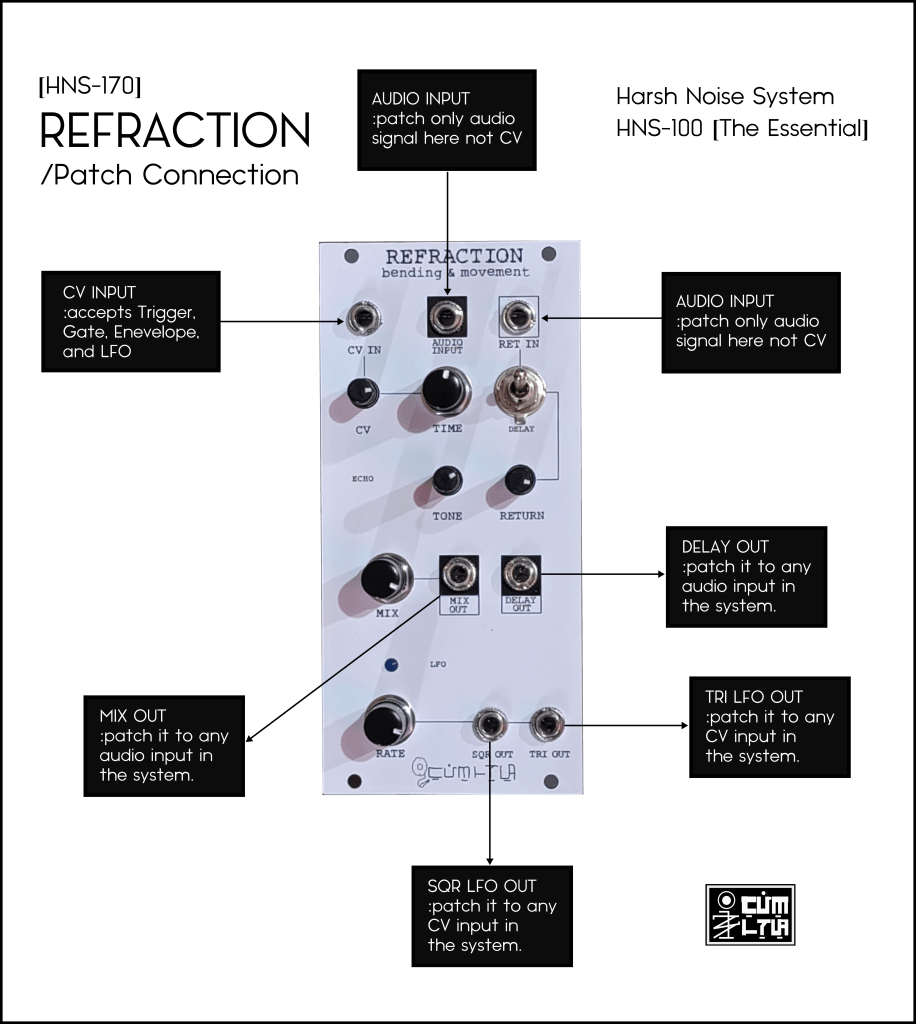

It provides voltage controlled echo-delay time and an audio feedback path for sound processing and general experimentation, along with an LFO (square and triangle waves) for additional modulation within the Harsh Noise System.

Nothing fancy, just a straightforward effects unit with LFO add-ons.

*Specifications*

Power Consumption:
+12V / 48mA peak, -12V / 19mA peak

Size:
12HP width, 36mm depth

Power Connection:
10-pin (2×5) power header

USER MANUAL:
